*Prices are per unit

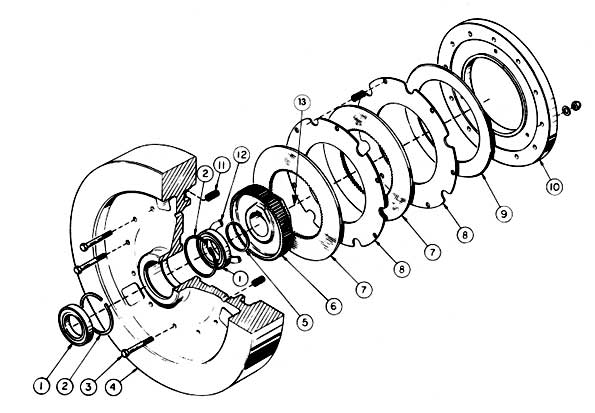

| Ref. No. |
Description |
85 Ton FW Type
44 dia. 2 plt
Order Number |
110 Ton FW Type
50 dia. 3 plt.
Order Number |
| 1 |
6AC Ball Bearing (2) |
740949602
124-KSFF (MRC)
$342.00 |
740949602
124-KSFF (MRC)
$342.00 |
| 2 |
8AC Retaining Ring (2) |
890058802
5000-700
$50.00 |
890058802
5000-700
$50.00 |
| 3 |
10AC Hex Hd. Cap Screw
Case Hard - w/ L. nuts (12)
850124902 Nut - $4.00 |
900229102
3/4-10 x 6" lg.
$17.00 |
900230702
3/4-10 x 7" lg.
$17.00 |
| 4 |
4AC Flywheel |
0409714D2
9714-D
call for price |
0410196D2
10-4AC
call for price |
| 5 |
Spacer Ring (Spirolox) |
890285802
RS-493
$30.00 |
890285802
RS-493
$30.00 |
| 6 |
24AC Spline |
4809513B2
9513-B
$1,356.00 |
4809513B2
9513-B
$1,356.00 |
| 7 |
3AC-2 Friction Plate |
6809499B2
(2) 3AC-2
$236.00 |
6809499B2
(2) 3AC-2
$236.00 |
| 8 |
1AC-2 Clutch Plate |
6809500B2
(2) 1AC-2
$668.00 |
6809500B2
(2) 1AC-2
$668.00 |
| 9 |
5AC-2 Piston, 1/2" thick |
6809501B2
5AC-2
$227.00 |
6809501B2
5AC-2
$227.00 |
| 10 |
2AC-2 Clutch Cover |
6809498C2
2AC-2
$1,645.00 |
6809498C2
2AC-2
$1,645.00 |
| 11 |
9AC Spring (6) |
930973702
1-1/2 O.D. x 2" lg.
$19.00 |
930057502
1-1/2 O.D. x 2-1/2" lg.
$21.00 |
| 12 |
Bearing Retainer |
6811659B2
$243.00 |
6811659B2
$243.00 |
| 13 |
Retaining Ring |
890286102
$19.00 |
890286102
$19.00 |
