*Prices are per unit
Ref.
No. |
Description |
150 ,200 ,250 ,300

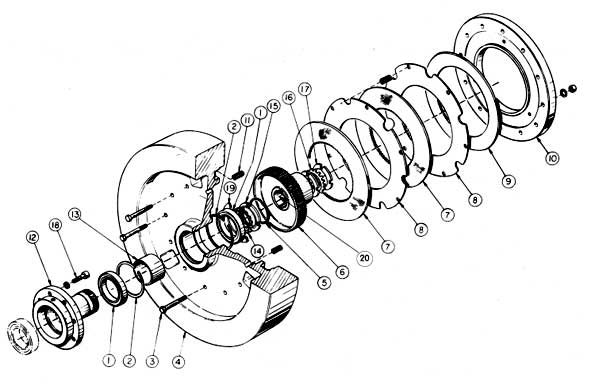

Ton Quill Mounted
Order Number |
| 1 |
6AC Ball Bearing (2) |
740949602
124-KSFF (MRC)
$342.00 |
| 2 |
8AC Retaining Ring (2) |
890058802
5000-700
$50.00 |
| 3 |
10AC Hex Hd. Cap Screw
Case Hard - w/ L. nuts (12)
850124902 Nut
$4.00 |
900121302
3/4-10 x 6" lg.
$17.00
900633102
3/4-10 x 6-1/2" lg.
$17.00 |
| 4 |
4AC Flywheel |
44 Dia.
0409714D2
9714-D
call for price
50 Dia.
0410195D2
10-4AC (2 PL.)
call for price |
| 5 |
Bronze Washer |
9810222A2
$122.00 |
| 6 |
24AC-2 Spline |
4810100B2
10100-B
$1,495.00 |
| 7 |
3AC-2 Friction Plate (2) |
6809499B2
3AC-2
$236.00 |
| 8 |
1AC-2 Clutch Plate (2) |
6809500B2
1AC-2
$668.00 |
| 9 |
5AC-2 Piston 1/2" thick |
6809501B2
5AC-2
$227.00 |
| 10 |
2AC-2 Clutch Cover |
6809498C2
2AC-2
$1,645.00 |
| 11 |
9AC Spring (6) |
930973702
1-1/2 O.D. x 2" Lg.
$19.00
930057502
1-1/2 O.D. x 2-1/2" Lg.
$21.00 |
| 12 |
Quill |
6810099C2
10099-C
$2,843.00 |
| 13 |
Spacer |
4510207B2
5-1/4 O.D. x 4-3/4 I.D. x 3-15/32" Lg.
$135.00 |
| 14 |
Lockwasher W-24 Quill |
980300602
$19.00 |
| 15 |
Locknut AN-24 Quill |
850261602
$52.00 |
| 16 |
Lockwasher W-17
Backshaft |
980300502
$13.00 |
| 17 |
Locknut AN-17 Backshaft (2) |
850261502
$52.00 |
| 18 |
Soc. Hd. Cap Screw Quill (7) |
900225102
3/4-10 x 2-3/4" Lg.
$13.00 |
| 19 |
Bearing Retainer |
6811659B2
1/4 Hrs. P.L.
$243.00 |
| 20 |
Key |
810265502
7/8 x 7/8 x 5-1/2" Lg.
$36.00 |
