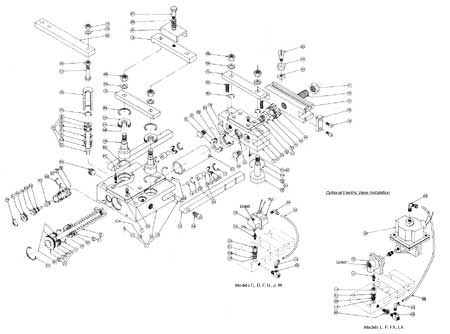

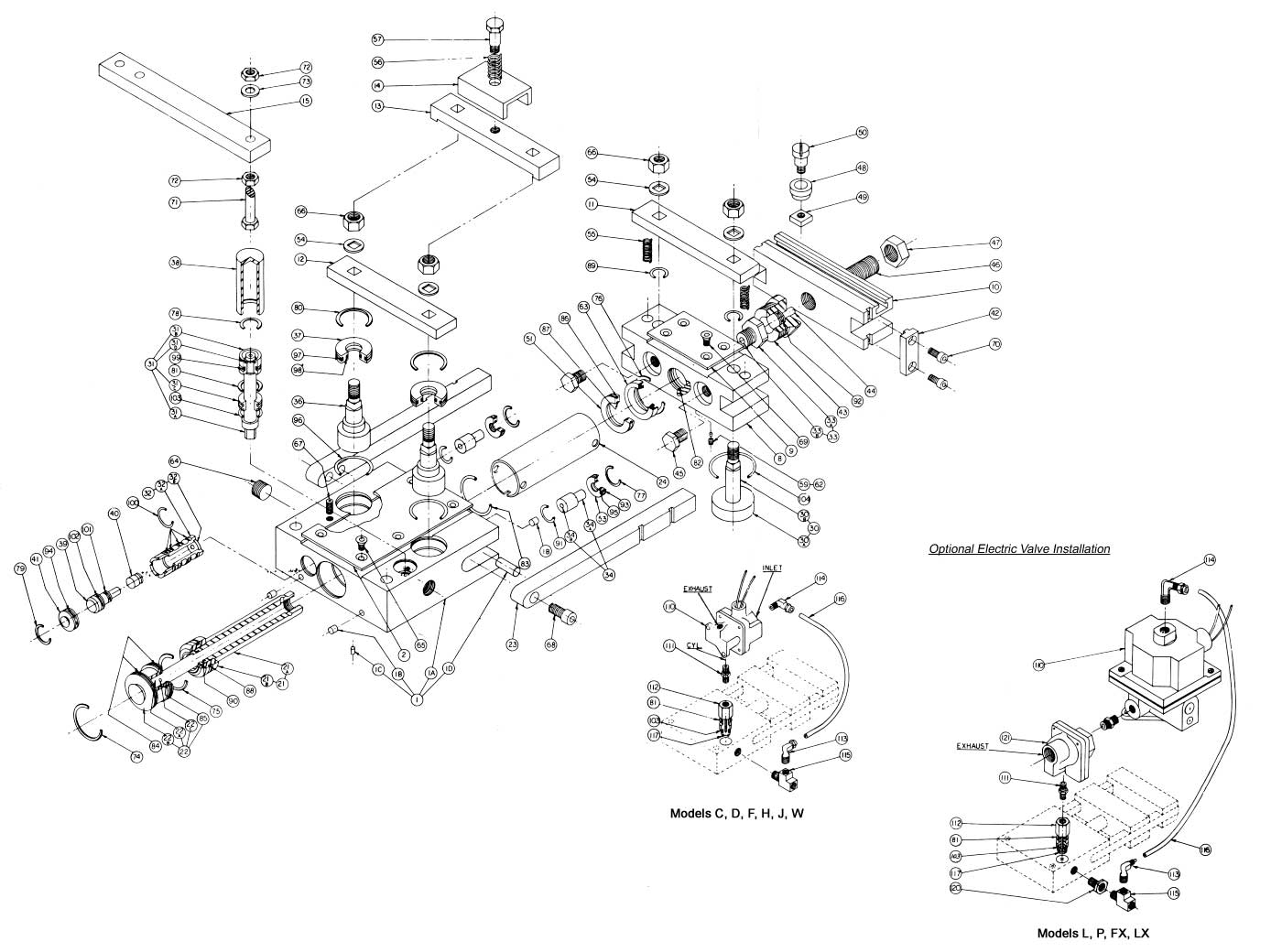

Click on the diagram to see an enlarged view of the parts breakdown. |
|
|
|
|
 |
|
|
|
|
|
Rapid-Air "FX" Series Feed Repair Parts
Call 1-800-472-8106 for Pricing
*Prices are per unit
| Item # |
Description |
Part Number |
Price |
| 1 |
Main Body Assembly |
See chart below |
See chart below |
| 2 |
Wear Plate, Main Body |
See chart below |
See chart below |
| 8 |
Slide Block |
30700058 |
Call |
| 9 |
Wear Plate, Slide Block |
31700181 |
Call |
| 10 |
Stop Block |
30700079 |
Call |
| 11 |
Feed Clamp |
31900067 |
Call |
| 12 |
Stock Clamp |
31900091 |
Call |
| 13 |
Special Stock Clamp Body |
31900114 |
Call |
| 14 |
Special Stock Clamp Holder |
31900129 |
Call |
| 15 |
Punch Holder Bracket |
31900057 |
Call |
| 21 |
Main Piston Assembly |
See chart below |
See chart below |
| 22 |
Control Tube Assembly |
See chart below |
See chart below |
| 23 |
Guide Rail (2) |
See chart below |
See chart below |
| 24 |
Main Piston Sleeve |
See chart below |
See chart below |
| 30 |
Feed Clamp Piston Assembly (2) |
25600003 |
Call |
| 31 |
Actuating Valve Assembly (less cap)
Actuating Valve Assembly (with cap) |
25000002
25000010 |
Call
Call |
| 32 |
Cartridge Assembly |
23900002 |
Call |
| 33 |
Shaft Retainer Assembly |
See chart below |
See chart below |
| 34 |
Cushion Piston Assembly (2) |
See chart below |
See chart below |
| 36 |
Stock Clamp Piston (2) |
35500099 |
Call |
| 37 |
Stock Clamp Piston Retainer (2) |
35800014 |
Call |
| 38 |
Actuating Valve Cap |
35900006 |
Call |
| 39 |
Pilot Operated Valve |
35500140 |
Call |
| 40 |
Poppet |
35100010 |
Call |
| 41 |
Ret. Pilot Operated Valve |
35800019 |
Call |
| 42 |
Stop Block Clamp (2) |
31900134 |
Call |
| 43 |
Main Cushion Bolt |
36100009 |
Call |
| 44 |
Rear Cushion Piston |
35500143 |
Call |
| 45 |
Cushion Bolt (2) |
36100012 |
Call |
| 46 |
Adjusting Screw |
66700008 |
Call |
| 47 |
Adjusting Screw Lock Nut |
65108814 |
Call |
| 48 |
Roller (2) |
34200007 |
Call |
| 49 |
Stock Guide Nut (2) |
36200007 |
Call |
| 50 |
Stock Guide Screw (2) |
35900009 |
Call |
| 51 |
Main Piston Retainer |
35800023 |
Call |
| 53 |
Cushion Piston Retainer (2) |
35800026 |
Call |
| 54 |
Clamp Washer (4) |
34700005 |
Call |
| 55 |
Feed Clamp Spring (2) |
37500011 |
Call |
| 56 |
Special Spring |
37500014 |
Call |
| 57 |
Shoulder Screw |
36100016 |
Call |
| 59 |
Plug |
33600098 |
Call |
| 62 |
Set Screw |
66212025 |
Call |
| 63 |
Wiper Seal |
60200021 |
Call |
| 64 |
Pipe Plug |
63130500 |
Call |
| 65 |
Socket Flat Head Cap Screw |
66512037 |
Call |
| 66 |
Locknut (4) |
65205020 |
Call |
| 67 |
Speed Adjusting Screw |
66700453 |
Call |
| 68 |
Socket Head Cap Screw (2) |
65936125 |
Call |
| 69 |
Socket Flat Head Cap Screw |
66512037 |
Call |
| 70 |
Socket Head Cap Screw (4) |
65920075 |
Call |
| 71 |
Hex Head Cap Screw |
66700814 |
Call |
| 72 |
Hex Nut (2) |
65103118 |
Call |
| 73 |
Washer |
61200020 |
Call |
| 74 |
Snap Ring |
60900200 |
Call |
| 75 |
Snap Ring |
60900200 |
Call |
| 76 |
Snap Ring |
60900200 |
Call |
| 77 |
Snap Ring (2) |
60900125 |
Call |
| 78 |
Snap Ring |
60900087 |
Call |
| 79 |
Snap Ring |
60900118 |
Call |
| 80 |
Snap Ring (2) |
60900150 |
Call |
| 81 |
Snap Ring |
60900093 |
Call |
| 82 |
O Ring |
60108022 |
Call |
| 83 |
O Ring |
60108136 |
Call |
| 84 |
O Ring (2) |
60108032 |
Call |
| 85 |
O Ring |
60108013 |
Call |
| 86 |
O Ring |
60108133 |
Call |
| 87 |
O Ring |
60118120 |
Call |
| 88 |
O Ring |
60108222 |
Call |
| 89 |
O Ring (2) |
60108116 |
Call |
| 90 |
O Ring |
60108111 |
Call |
| 91 |
O Ring (2) |
60108116 |
Call |
| 92 |
O Ring |
60108115 |
Call |
| 93 |
O Ring (2) |
60108121 |
Call |
| 94 |
O Ring |
60108023 |
Call |
| 95 |
O Ring (2) |
60108114 |
Call |
| 96 |
O Ring (2) |
60108220 |
Call |
| 97 |
O Ring (2) |
60108218 |
Call |
| 98 |
O Ring (2) |
60108211 |
Call |
| 99 |
O Ring |
60118115 |
Call |
| 100 |
O Ring (4) |
60108023 |
Call |
| 101 |
O Ring |
60108111 |
Call |
| 102 |
O Ring |
60108115 |
Call |
| 103 |
O Ring |
60108116 |
Call |
| 104 |
O Ring (2) |
60108232 |
Call |
| 110 |
Solenoid Valve |
69200001 |
Call |
| 111 |
Hex Nipple |
67100007 |
Call |
| 112 |
Control Valve Plug |
34600007 |
Call |
| 113 |
Elbow |
67100009 |
Call |
| 114 |
Elbow |
67100004 |
Call |
| 115 |
Street Tee |
67100008 |
Call |
| 116 |
Tubing |
34400085 |
Call |
| 117 |
O Ring |
60108112 |
Call |
| 120 |
Bushing |
66960502 |
Call |
| 121 |
Quick Exhaust Valve |
68000000 |
Call |
|
|
|
|
|
|
|
|
|
|
|
|
| Main Body Assembly |
| Model # |
Part Number |
Price |
| FX6 |
20200323 |
Call |
| FX12 |
20200324 |
Call |
|
|
|
|
| Wear Plate, Main Body |
| Model # |
Part Number |
Price |
| FX6 |
31700122 |
Call |
| FX12 |
31700120 |
Call |
|
|
|
|
|
| Main Piston Assembly |
| Model # |
Part Number |
Price |
| FX6 |
25500019 |
Call |
| FX12 |
25500022 |
Call |
|
|
|
|
|
| Control Tube Assembly |
| Model # |
Part Number |
Price |
| FX6 |
24400022 |
Call |
| FX12 |
24400025 |
Call |
|
|
|
|
|
| Guide Rail |
| Model # |
Part Number |
Price |
| FX6 |
33600076 |
Call |
| FX12 |
33600079 |
Call |
|
|
|
|
|
| Main Piston Sleeve |
| Model # |
Part Number |
Price |
| FX6 |
33900054 |
Call |
| FX12 |
33900057 |
Call |
|
|
|
|
|
| Shaft Retainer Assembly |
| Model # |
Part Number |
Price |
| FX6 |
25800001 |
Call |
| FX12 |
25800001 |
Call |
|
|
|
|
|
| Cushion Piston Assembly |
| Model # |
Part Number |
Price |
| FX6 |
25500037 |
Call |
| FX12 |
25500037 |
Call |
|
|
|
|
|
|
|
